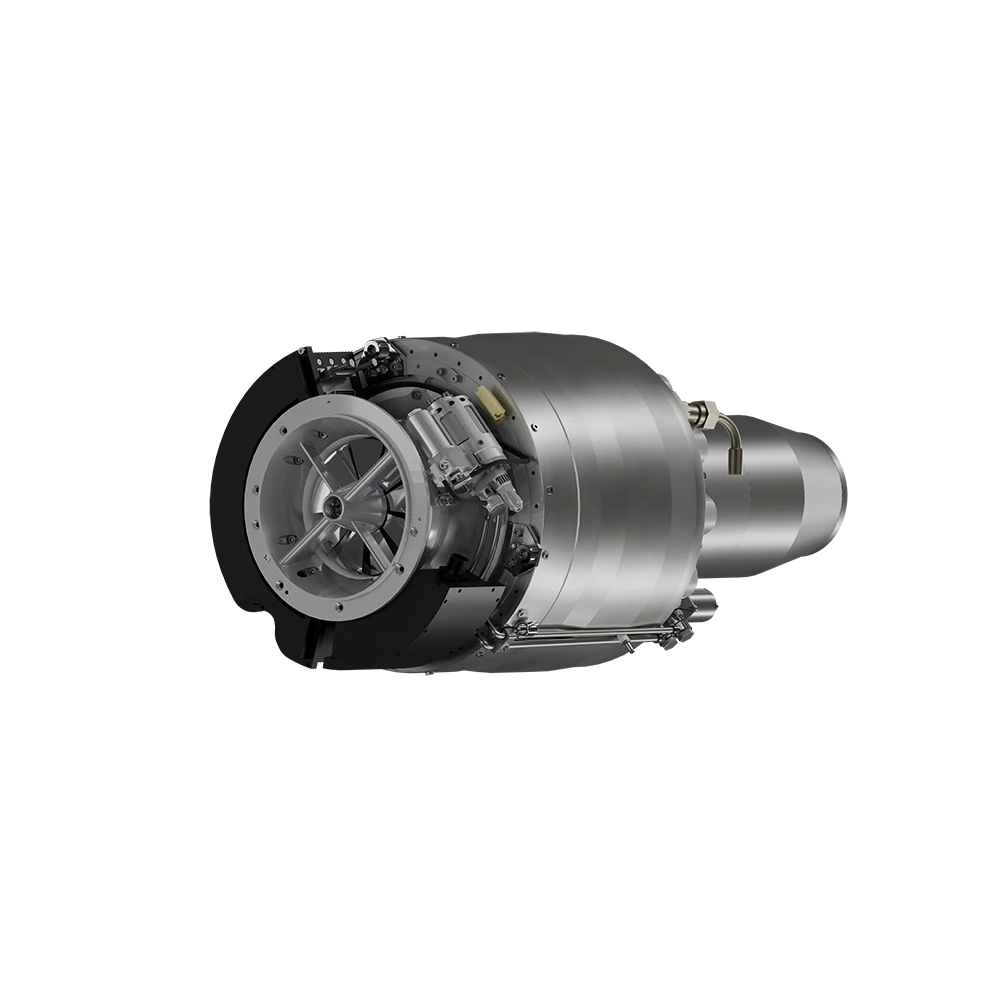

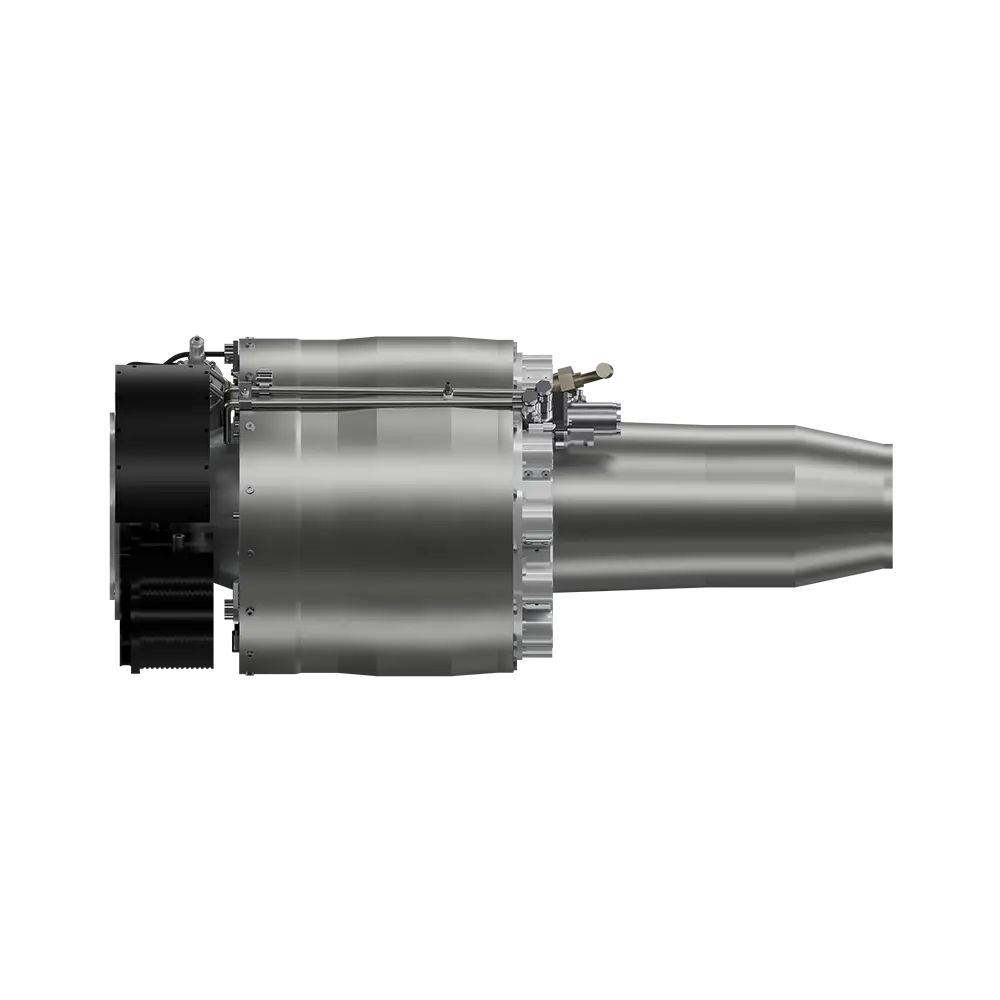

Turbojet engine BPS TJ150A

It is the only high-performance turbojet engine with the same thrust that has been mass-produced in China, with technological advantages such as small size, high thrust, low fuel consumption, and high reliability.

Widely used in unmanned aerial vehicles, target drones, cruise missiles, air to surface missiles, gliding bombs and other flight platforms, supporting high-altitude, high-speed, long endurance, large maneuverability, and complex motion flight of flight platforms.Excellent flight performance is achieved through the use of advanced key design technologies for aircraft engines; Efficient compressor technology, secondary flow and film cooling technology, annular recirculation combustion chamber design technology, low emission combustion control technology, and digital analog hybrid AI control technology. Support multiple start stop operations in the air.

Technical parameters

	Metric units	Imperial units
Max. thrust	1,600 N	359.69 Ibf
Rated. thrust	1,500 N	337.21 Ibf
Dry Weight	≤ 17.3 kg	≤ 38.13 lb
Outer diameter	272mm	10.71 in
Lenght	625 mm	24.61 in
Max. speed(r/min)	57000	57000
Thrust-to-Weight Ratio	9.3	9.3

Leaflet

Typical applications

The BPS-TJ150A turbojet engine are ideal for a variety of applicationsin unmanned aerial vehicles, target drones, cruise missiles, air to surface missiles, gliding bombs and other flight platforms, supporting high-altitude, high-speed, long endurance, large maneuverability, and complex motion flight of flight platforms.
